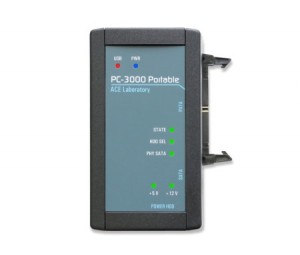

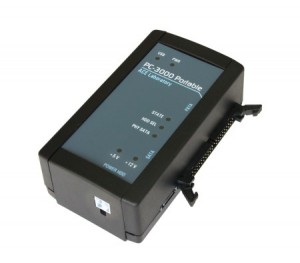

The PC-3000 Portable is a mobile hardware-software solution intended for diagnosing and repairing HDDs based on SATA (Serial ATA) and PATA (IDE) interfaces for numerous vendors (Seagate, Western Digital, Fujitsu, Samsung, Maxtor, Quantum, IBM (HGST), HITACHI, TOSHIBA), for various capacities (from 500 MB to 6 TB) and various form factors: 3.5" - desktop drives, 2.5" and 1.8" - laptop drives. The PC-3000 Portable’s small size and its ability to be used with laptops, makes the PC-3000 Portable Professional System the ideal choice for recovering data on-site at your customer’s location.

Form factor:Embedded board of PC expansion which uses one slot.

Interface type: USB2.0

Diagnostic ports (switchable): 1 - SATA, 1 - PATA

Processing modes:

SATA - UDMA66/33, PIO4/3/2/1/0

PATA - UDMA66/33, PIO4/3/2/1/0

Power adapter: Single-channel power adapter with protection from overvoltage and current overloading

Supported HDD: 500 MB - 6 TB; 3.5", 2.5",1.8"

Number of active licenses: 2

OS Platforms: Windows XP, Windows Vista, Windows 7, Windows 8, Windows 10; х86, х64

Recommended PC configuration:

CPU: Intel Core i5 (Quad Core)

RAM: 8GB

Storage configuration: 1 TB HDD

LCD Monitor: 22", 1920x1080

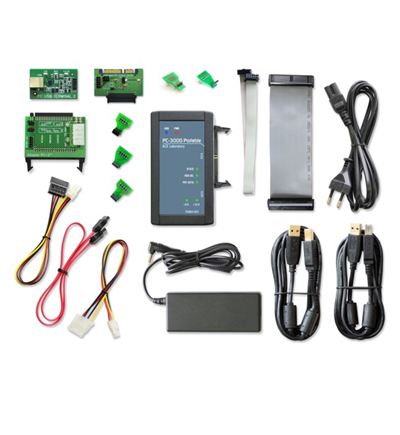

The PC-3000 Portable Kit

PC-3000 USB adapter-tester

PC-USB-TERMINAL adapter

PC-2″ adapter

SATA- micro SATA adapter

MX-SAFE adapter

PC-FUJ.SATA adapter

PC-QUANTUM adapter

PC-SAMSUNG adapter

PC-SEAG.SATA adapter

PC-SEAGATE adapter

PC-TOSH.SATA adapter

USB 2.0 Defender cable

SATA cable (66 cm)

SATA RAID edition (80 cm) cable

UDMA33 (18,5 cm) flat cable

IDC10 (30 cm) cable

SATA HDD (25 cm) power cable

PATA HDD (25 cm) power cable

220V/19V power module with cable

PC-3000 Express software, resource database

User manual

PC-3000 Portable Kit

Processing modes:

SATA x4 — UDMA133, UDMA100, UDMA66, UDMA33, PIO4, PIO3, PIO2, PIO1, PIO0
PATA x2 – UDMA100, UDMA66, UDMA33, PIO4, PIO3, PIO2, PIO1, PIO0

Power supply adapter

A single-channel power supply adapter provides independent voltage supply and protection from overvoltage and current overloading. In case of any of these events, the HDD power supply is switched off automatically.
In addition, this channel has a feedback circuit with a special management software that controls the supplying voltage values + 5 V, + 12 V and informs the user about any issues with the feed circuit. The power supply adapter uses a certified external power module 220V/19V included in the PC-3000 Portable Kit.

The PC-3000 UDMA hardware

How to use the PC-3000 Portable to repair HDDs? The PC-3000 provides a wide range of functions for repairing HDDs. It enables the user to overwrite FLASH ROM, to switch off damaged magnetic heads, to detect and exclude damage in the HDD service area, to recalculate and overwrite service modules, to regenerate the translation system, to clean and reset S.M.A.R.T. logs and tables, to detect bad areas in magnetic surfaces and to exclude them from the HDD working area. Afterward, identification parameters are corrected (including serial number, model, capacity, etc.)

PC 3000 Portable
